How Hydrogen Is Stored: 3 Key Methods
Storage Is Hydrogen's Biggest Engineering Challenge
Hydrogen is the lightest element in the universe. By weight, it packs nearly three times the energy of gasoline. By volume, it is a different story entirely. At atmospheric pressure, you would need a balloon the size of a small car to hold one kilogram of hydrogen.
Solving this storage challenge is what makes hydrogen practical as a portable fuel. Three primary methods exist: compressed gas, liquid hydrogen, and solid-state storage. Each serves different applications, and the right choice depends on your operational requirements.
The Three Storage Methods Compared
| Property | Compressed Gas | Liquid Hydrogen | Solid-State |
|---|---|---|---|
| Storage pressure | 350-700 bar | 1-3 bar | Low pressure |
| Temperature | Ambient | -253C (cryogenic) | Ambient |
| Volumetric density | 25-40 g/L | 70 g/L | 50-150 g/L |
| Gravimetric density | 5-6% by weight | ~100% (pure H2) | 1-7% by weight |
| Refueling time | Minutes | Minutes | Minutes to hours |
| Boil-off losses | None | 1-3% per day | None |
| Infrastructure needs | Compressors | Liquefaction plant | Specialized materials |
| Maturity | Commercial | Commercial | Emerging |
| Best for | Vehicles, portable | Large-scale transport | Portable, military |
Compressed Gas Storage
This is the most widely deployed method. Hydrogen gas is compressed to 350 or 700 bar (5,000 or 10,000 psi) and stored in high-strength tanks.
Tank Technology
Modern compressed hydrogen tanks use a multi-layer construction:
- Type I - All-metal (steel). Heavy. Used in stationary applications
- Type II - Metal liner with composite overwrap on the cylinder. Moderate weight savings
- Type III - Metal liner (usually aluminum) with full composite overwrap. Lighter
- Type IV - Polymer liner with full carbon fiber composite overwrap. Lightest. Used in vehicles and portable systems
Type IV tanks achieve the best weight-to-storage ratio and are the standard for automotive and portable applications. They are also the most expensive.
Advantages
- Mature technology with established supply chains
- No energy loss during storage (unlike liquid hydrogen boil-off)
- Fast refueling (3-5 minutes for vehicle tanks)
- Works at ambient temperature
Limitations
- Bulky relative to the hydrogen stored. Even at 700 bar, volumetric density is modest
- High-pressure systems require robust safety engineering
- Compression itself consumes 10-15% of the hydrogen's energy content
Liquid Hydrogen Storage
Cooling hydrogen to -253C turns it into a liquid with much higher volumetric density. NASA uses liquid hydrogen to fuel rockets. Trucks haul it in cryogenic tankers.
How It Works
Hydrogen gas is cooled through multiple stages until it liquefies at -253C. The liquid is stored in double-walled, vacuum-insulated tanks (similar to a thermos, but engineered for extreme cold).
Advantages
- Highest volumetric density of mature technologies (70 g/L)
- Efficient for long-distance transport and large-scale storage
- Lower pressure than compressed gas (safer in some respects)
Limitations
- Liquefaction is energy-intensive (consumes 25-35% of the hydrogen's energy)
- Boil-off losses of 1-3% per day as heat inevitably leaks in
- Requires specialized cryogenic infrastructure
- Not practical for portable or small-scale applications
Liquid hydrogen makes sense for large industrial operations and long-haul transport. It does not make sense for field-deployable power systems.
Solid-State Hydrogen Storage
This is the frontier of hydrogen storage technology, and it is the most relevant to portable power applications. Instead of compressing gas or liquefying it, hydrogen is absorbed into solid materials at low pressure and moderate temperature.
Storage Materials
- Metal hydrides - Metals like magnesium, titanium, and lanthanum alloys absorb hydrogen atoms into their crystal structure. Heat releases the hydrogen for use
- Chemical hydrides - Compounds like sodium borohydride release hydrogen through a chemical reaction (often with water)
- Carbon-based materials - Activated carbon, carbon nanotubes, and graphene structures adsorb hydrogen on their surfaces
Advantages
- Low-pressure storage (inherently safer than 700-bar compressed tanks)
- Compact form factor suitable for portable applications
- No boil-off losses
- Can achieve volumetric density higher than compressed gas
Limitations
- Lower gravimetric density (the storage material itself is heavy relative to the hydrogen it holds)
- Heat management required (absorption releases heat, desorption requires heat)
- Some chemical hydride reactions are not easily reversible
- Still maturing commercially
Which Method Works for Portable Power?

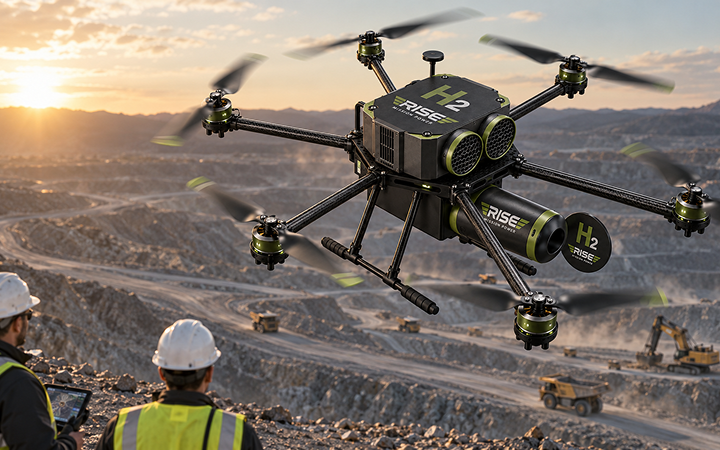

For field-deployable power systems like the Sentinel, Falcon, and Titan, the storage method must balance weight, volume, safety, and simplicity.
| Requirement | Compressed Gas | Liquid | Solid-State |
|---|---|---|---|
| Lightweight for man-portable | Moderate | Poor | Good |
| Safe in combat/field conditions | Good (with engineering) | Poor (cryogenic) | Excellent |
| Long shelf life | Excellent | Poor (boil-off) | Excellent |
| Simple logistics | Good | Complex | Good |
| Fast refueling | Excellent | Good | Variable |
Rise Power's Hydrogen Cartridge Kit is engineered to deliver the optimal balance of energy density, weight, safety, and shelf life for portable applications. The cartridges feature RFID tracking for supply chain visibility and a 15-year shelf life, making them ideal for pre-positioning in military and emergency response scenarios.
The Future of Hydrogen Storage
Research is advancing on several fronts:
- Advanced metal hydrides that release hydrogen at lower temperatures
- Metal-organic frameworks (MOFs) with extremely high surface area for hydrogen adsorption
- Ammonia cracking as an alternative hydrogen carrier
- Underground salt cavern storage for grid-scale seasonal energy storage
For portable power applications, the trajectory is toward higher energy density at lower weight and pressure. This directly translates to lighter systems with longer runtime for operators in the field.
FAQ
Which hydrogen storage method is safest for portable applications?
Solid-state storage operates at low pressure and ambient temperature, making it inherently the safest option for portable use. Compressed gas at 700 bar is safe with proper engineering but requires more robust containment. Rise Power cartridges are designed for field safety across all conditions.
How much hydrogen does a portable fuel cell need?
The Sentinel portable fuel cell runs 30+ hours on a single cartridge. Hydrogen consumption depends on the power output, but typical portable PEM systems consume 0.5-1.0 grams of hydrogen per watt-hour of electricity produced.
Can hydrogen storage tanks explode?
Modern composite tanks are designed to vent safely rather than rupture catastrophically. Hydrogen gas disperses rapidly upward if released, unlike gasoline or propane vapors that pool at ground level. Learn more about fuel cell safety.
How does hydrogen storage compare to battery energy density?
By weight, hydrogen stored even in the heaviest metal hydride systems offers 2-3x the energy density of lithium-ion batteries. By volume, compressed hydrogen at 700 bar is roughly comparable to batteries, while solid-state methods can exceed battery volumetric density.
Is hydrogen storage technology improving?
Yes. The U.S. Department of Energy targets for on-board hydrogen storage are 6.5% gravimetric density and 50 g/L volumetric density. Current commercial systems are approaching these targets, with laboratory results exceeding them.
