Datasheets

Technical specifications for Rise Power systems. Beta-stage hardware in active validation \u2014 full datasheets are available on briefing request as compliance work completes.

Beta technology notice: target performance values reflect current engineering specifications. Final certified figures will be published as the certification roadmap completes.

Sentinel
01Datasheet· Beta

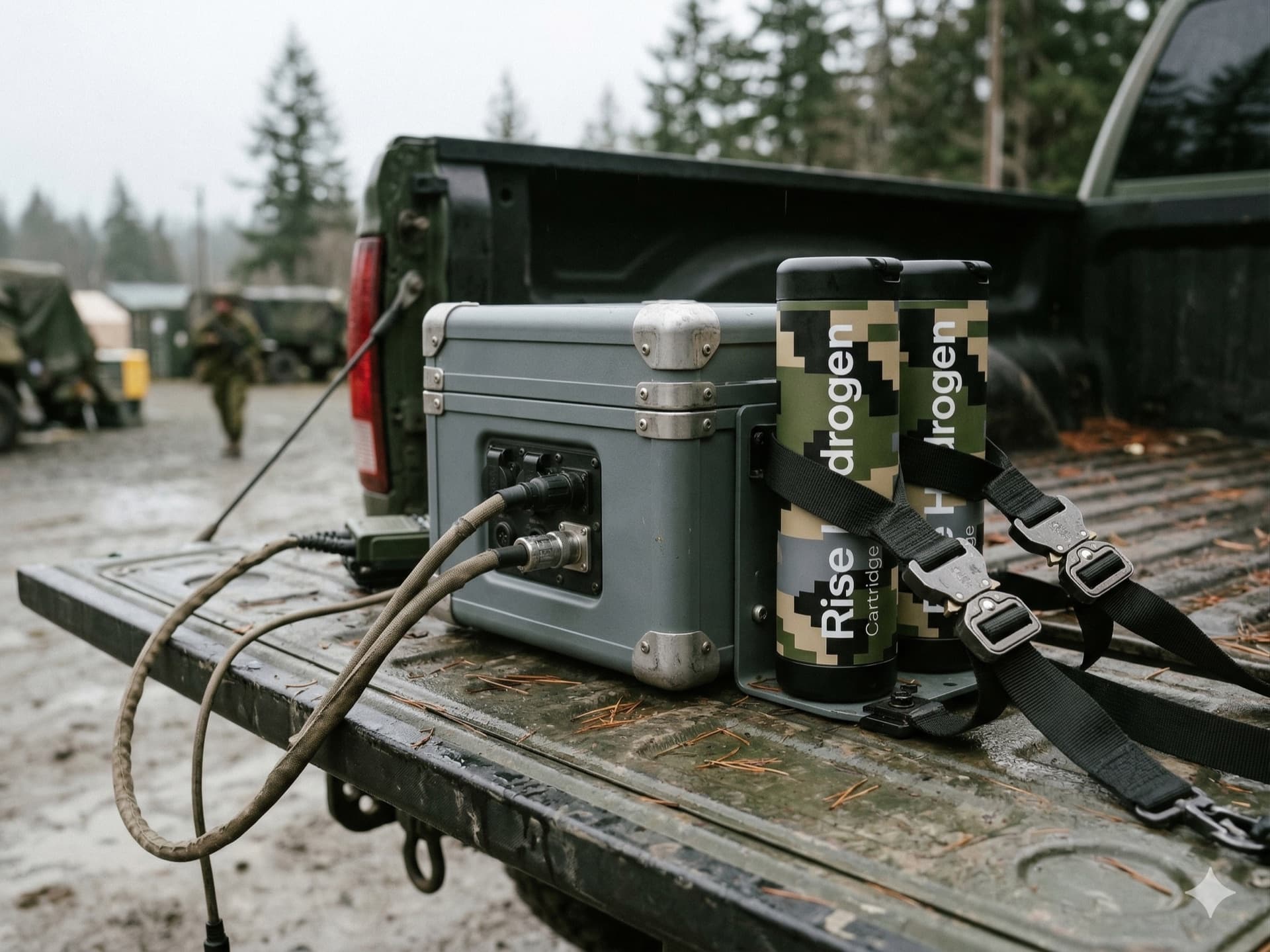

Sentinel

Man portable hydrogen power in a ruggedized, field ready form factor. Unlimited runtime via 30 second cartridge swap. Under 15 lbs. Sub ambient acoustic signature for forward positions.

Engineering Targets
Continuous Output
500 W (target)
Runtime per Cartridge
24 hr (target)
Acoustic Signature @ 1m
< 65 dBA
System Weight
< 50 lbs
Operating Temperature
−20 °C to 50 °C (target)
Ingress Protection
IP65 (target)
Cartridge Swap
< 30 sec, no tools
Falcon
02Datasheet· Beta

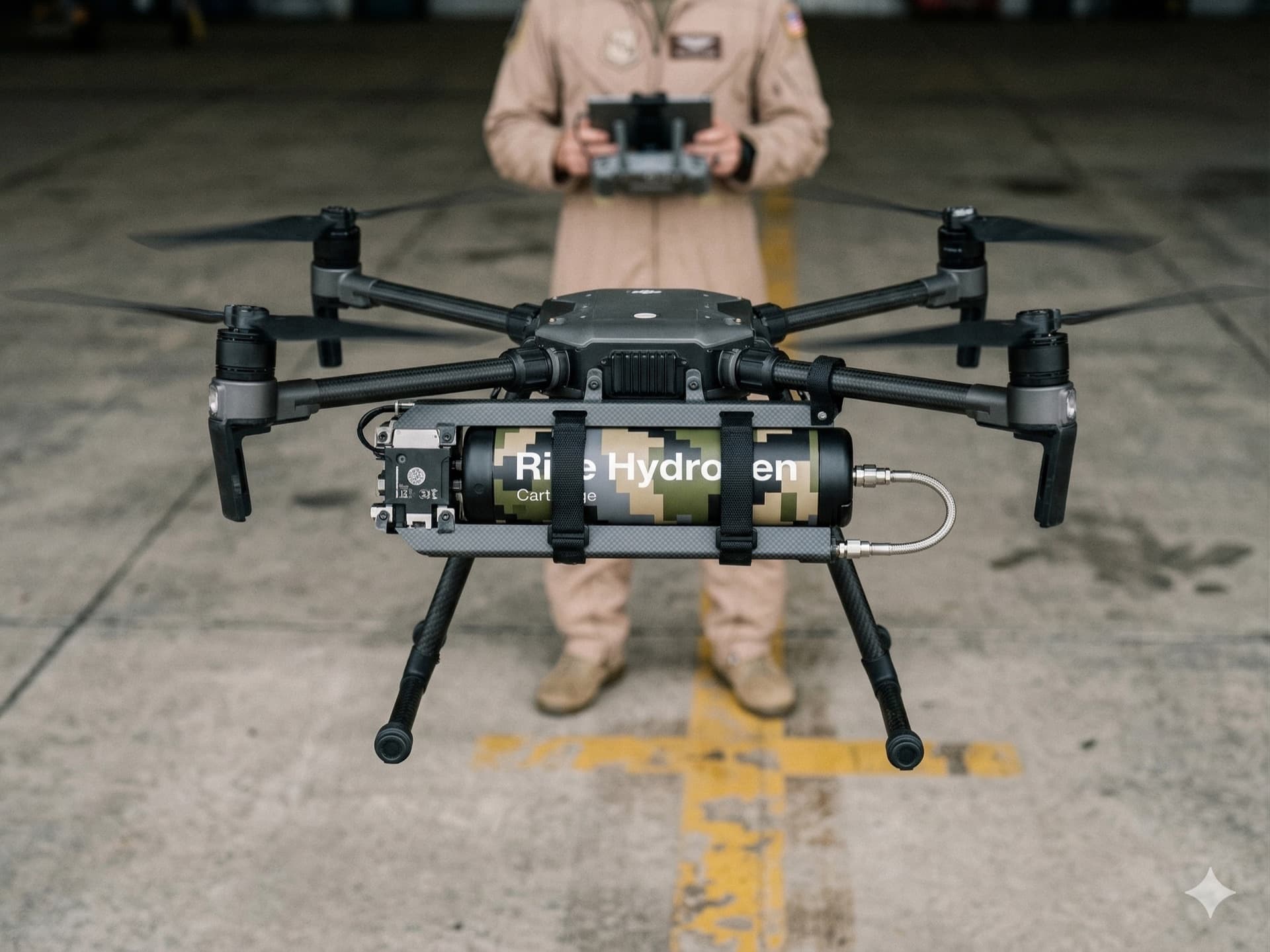

Falcon

Plug and play hydrogen range extender for lithium polymer drones. Extends flight time to 4 plus hours, targeting 5x the range of lithium alone. Engineered for ISR, remote surveillance, and autonomous delivery.

Engineering Targets
Power Output
800 W peak (target)
Flight Time Extension
Up to 5x lithium baseline
Compatible Platforms
DJI Matrice class and similar
System Weight
< 4 kg with cartridge (target)
Operating Temperature
−20 °C to 50 °C (target)
Cartridge Mount
Underbelly cradle, 2-strap clamp
Titan
03Datasheet· Beta

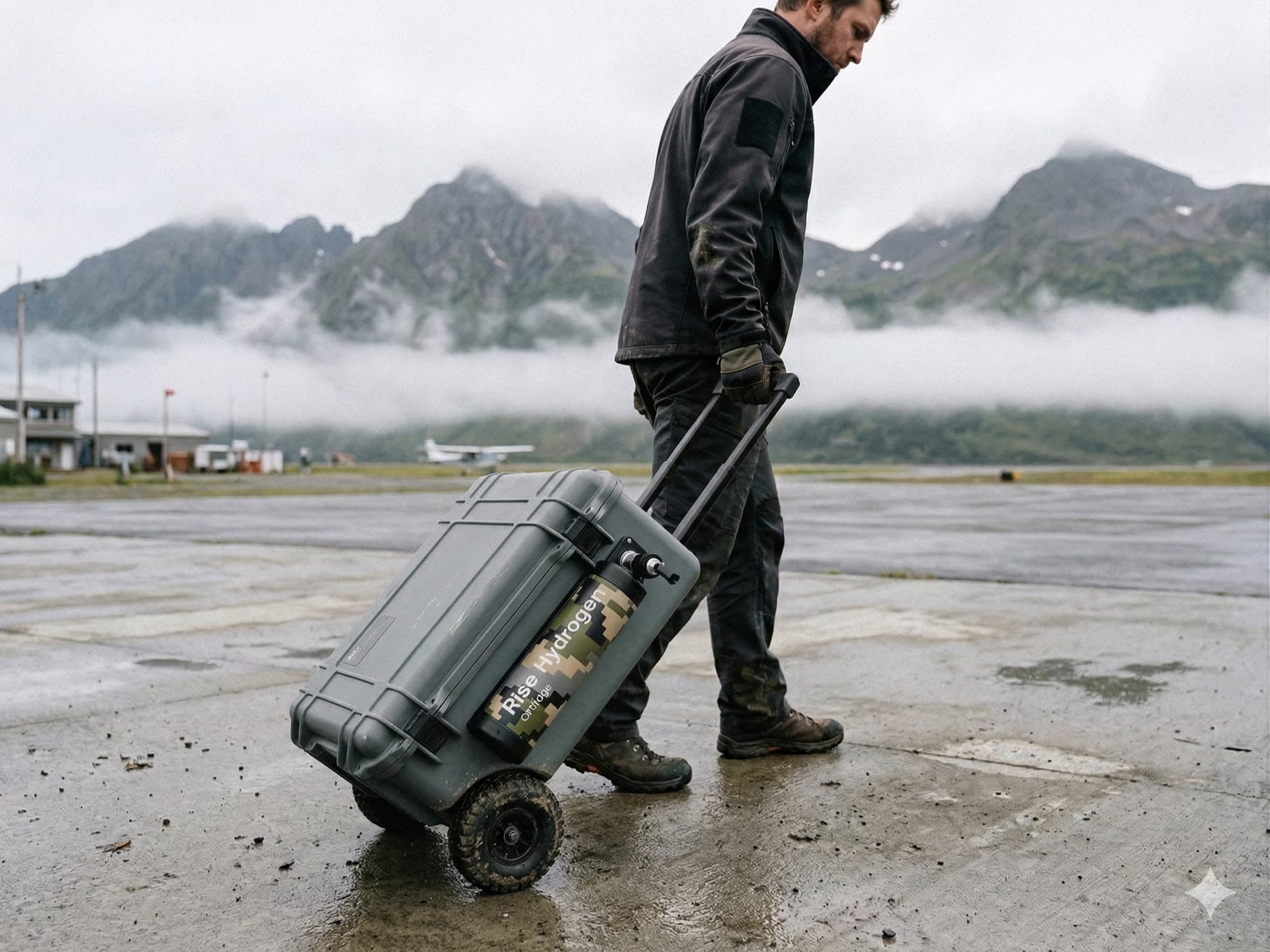

Titan

A 3 kW zero emission generator built for sustained field operations. Operates silently across extreme temperature ranges with zero heat signature. Purpose built for defense, disaster response, and remote infrastructure.

Engineering Targets
Continuous Output
3,000 W (target)
Runtime per Cartridge
8 hr at rated load (target)
Acoustic Signature @ 1m
< 65 dBA
Operating Temperature
−20 °C to 50 °C (target)
Form Factor
Wheeled, telescoping handle
Output Receptacles
2x 120 V, USB-A, USB-C, MIL connector
Hydrogen Cartridge Kit
04Datasheet· Beta

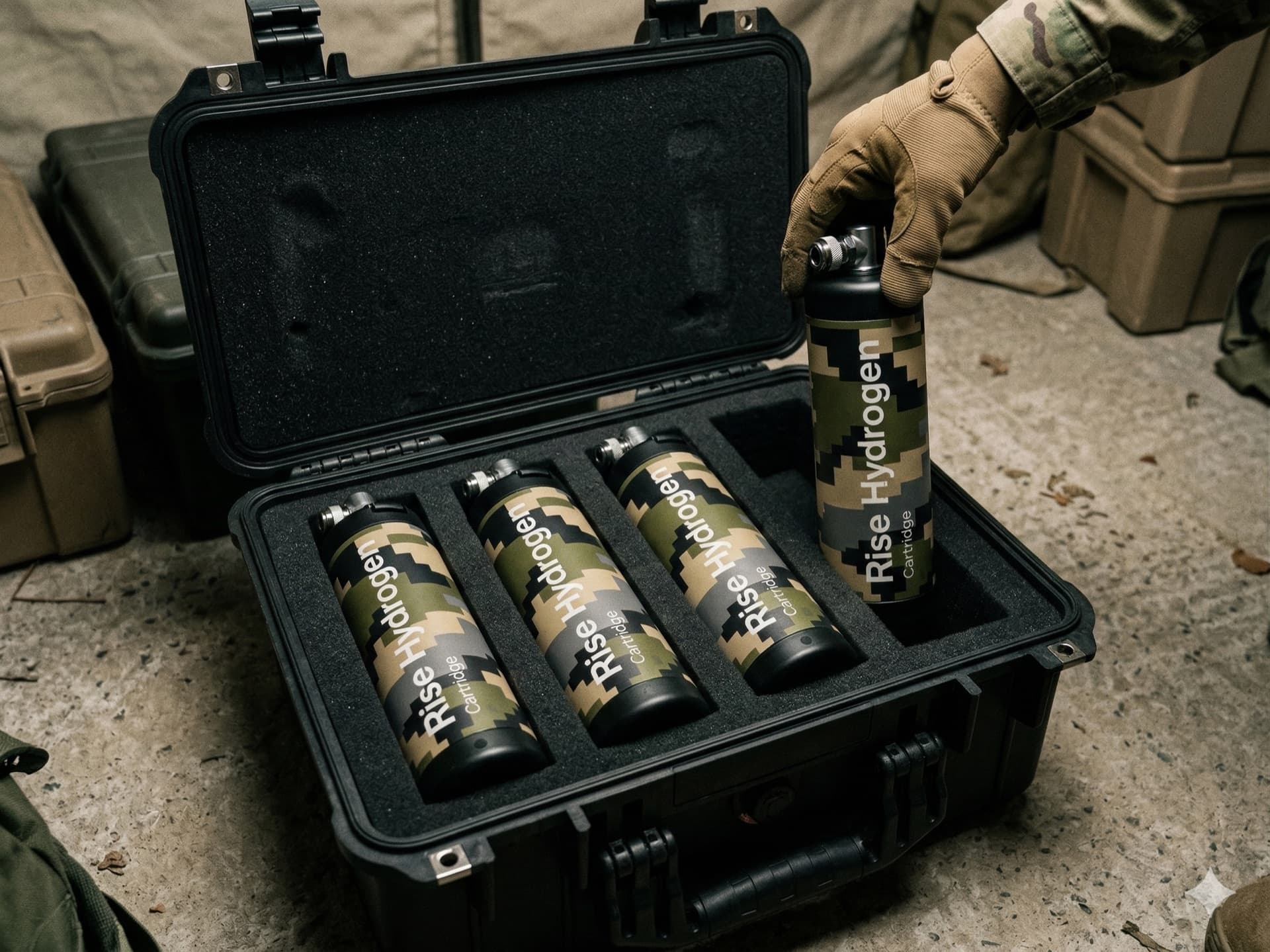

Hydrogen Cartridge Kit

Universal fuel cell compatible cartridges with RFID smart monitoring. Leak proof, lightweight, and designed for rapid field replenishment. Swap a cartridge and restore full runtime without tools or specialized training.

Engineering Targets
Cartridge Diameter
6 in (152 mm)
Cartridge Height
24 in (610 mm)
Coupler
Stainless quick-disconnect, push-to-connect
Shelf Life
Effectively indefinite
Pack Configuration
4x cartridges, Pelican 1610 case
Transport
Ground / air (certification in progress)

Need the full performance envelope?

Full datasheets, runtime curves, derating data, and compliance documentation are available on briefing request for serious technical evaluators.
